PCI Barrafix® EP
Epoxy construction adhesive
for friction-locked connections
Areas of application
- For indoor and outdoor use.
- Adhesive for force-locked connections of precast concrete elements, concrete blocks, concrete slabs, concrete pipes and mortars.
- Fixing of machine anchoring, balusters, tension rods and tie bolts.
- Gluing of PCI Pecitape 3000 waterproofing tape.
Listed as construction adhesive for kerbstones at the Civil Engineering Office at Grisons/Switzerland.
Product features
- 2 components.
- Low odor development.
- Free of solvent and nonylphenol.
- Easy mixing by hand or machine.
- Good control of mixing process.
- Partial quantities can be easily taken out due to resealable pails.
- High adhesive tensile strength.
- Can be applied on substrates from dry to matt-damp stage.
- Good non-sag properties, even at high temperatures.
- Shock resistant and durable.
- Temperature resistant (short term) up to +80°C.
- Resistant to water and wet abrasion.
- Certified to EN 1504-4 as construction adhesive for bonding mortar and concrete.
Colors:
Comp. A white, comp. B black, white, black
Forms of delivery:
25-kg-set/ 12,50-kg-pail/ 6-kg-pail
Consumption calculator
Your Result
Quantity Required approximately
kg
corresponds
25-kg-set
pieces
6-kg-pail
pieces
Your Result
Quantity Required approximately
kg
corresponds
25-kg-set
pieces
6-kg-pail
pieces
Your Result
Quantity Required approximately
kg
corresponds
25-kg-set
pieces
6-kg-pail
pieces
This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
YOUR DIRECT CONTACT
Downloads
Technical data sheet
Safety data sheet

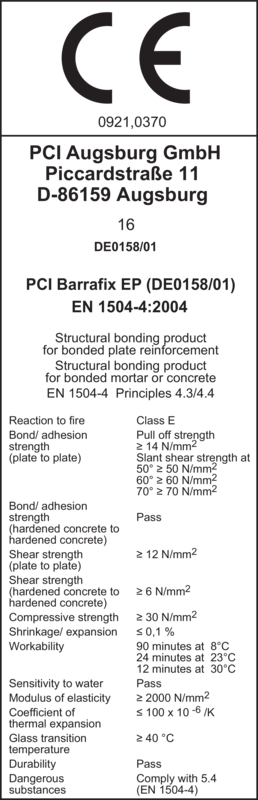

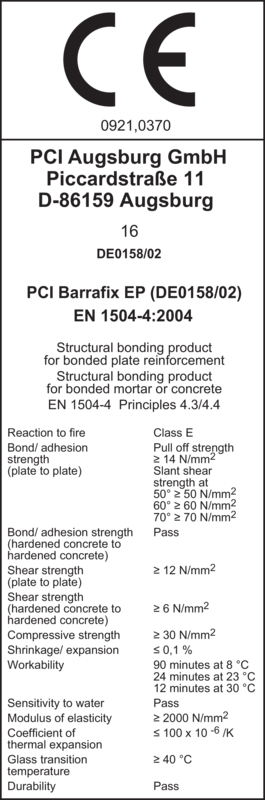

Declaration of performance EN 1504-4
Classification report EN 13501-1 (E)
Combined with product:
PCI Barrafix® EP
UK Declaration of Conformity BS EN 1504-4
Combined with product:
PCI Barrafix® EP
