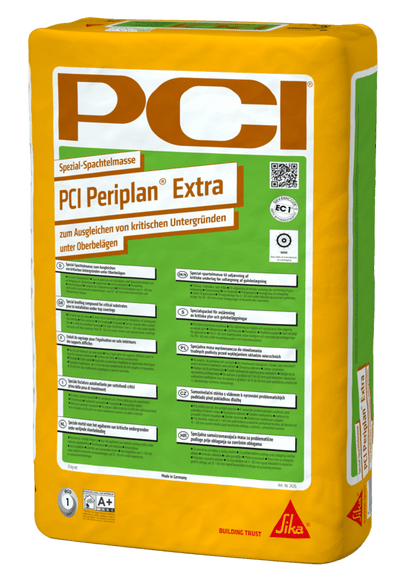

PCI Periplan® Extra
Leveling compound
for critical substrates under top coverings
Areas of application
- For indoor use.
- For indoor use under a waterproofing layer bonded with tiles and slabs up to water exposure class W2-I according to DIN 18534.
- For producing smooth and level surfaces.
- For leveling
- wooden floors,
- OSB boards,
- particle boards,
- mineral substrates,
- non absorbent substrates,
- mastic asphalt. - Prior to laying
- ceramic tiles and natural stones,
- textile and resilient floorings,
- parquet or laminate flooring to be bonded. - For layer thickness from 3 to 60 mm.
- Suitable for warm water underfloor heating recommended for a thin-layer bedding.
Product features
- Fiber reinforced, helps reduce the formation of cracks on wooden floorings.
- Self leveling, can therefore be applied with little effort.
- Fast curing, walkable after approx. 3 hours (at +23 °C and 50% relative humidity).
- Dust reduced, low development of dust when opening the bag, pouring and mixing the product.
- Very low emissions, GEV-EMICODE EC 1 PLUS.
Colors:
grey
Forms of delivery:
25-kg-bag
Consumption calculator
Your Result
Quantity Required approximately
kg
corresponds
25-kg-bag
pieces
This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.

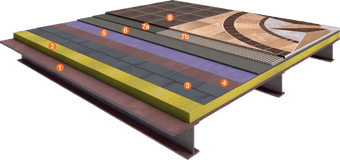

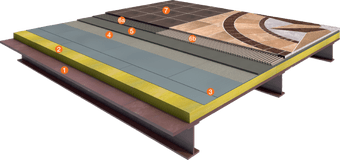

Matching product systems

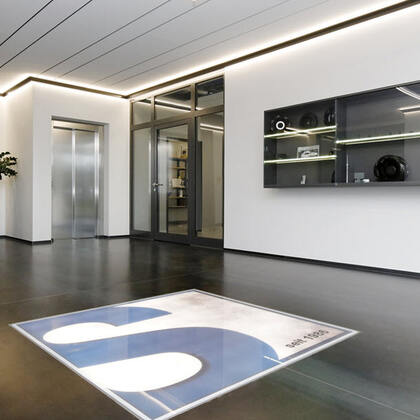

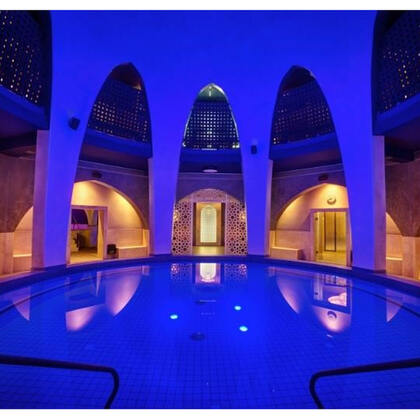

More product systemsReferences
YOUR DIRECT CONTACT
Downloads
Technical data sheet
Safety data sheet
Declaration of performance EN 13813 (CT-C25-F6)
Sustainability data sheet

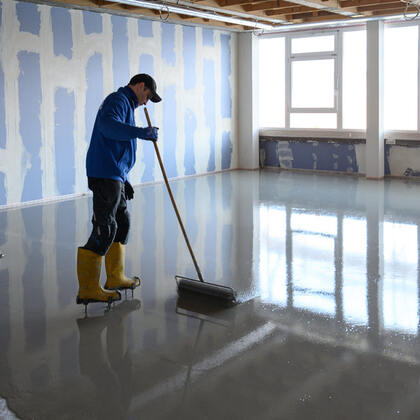

Perfectly on the level - with the PCI Periplan family
Classification report EN 13501-1 (A2fl-s1)
Combined with product:
PCI Periplan® Extra
MED EC Type Examination Certificate Marine Equipment Directive 2014/90/EU Item No. MED/3.1
Combined with product:
PCI Epoxigrund 390, PCI Periplan® Extra
MED EC Type Examination Certificate Marine Equipment Directive 2014/90/EU Item No. MED/3.1
Combined with product:
PCI Periplan® Extra
Declaration of Conformity Marine Equipement Directive 96/98/EC Item A1/3.1
Combined with product:
PCI Novoment® Light, PCI STL 39, PCI VG 2, PCI Epoxigrund 390, PCI Periplan® Extra, PCI Novoment® M1 plus
Licensing GEV EMICODE (EC1 PLUS)
Combined with product:
PCI Periplan® Extra
MED EC Certificate of Conformity Marine Equipment Directive 2014/90/EU Item No MED/3.13, MED/3.18a, MED/3.18c
Combined with product:
PCI Nanolight®, PCI Novoment® Light, PCI Durapox® Premium Multicolor, PCI Durapox® Premium, PCI Flexmörtel® S2, PCI Nanofug® Premium, PCI Epoxigrund Rapid, PCI STL 39, PCI VG 2, PCI Ocean® Flex PUR, PCI Ocean® Deck, PCI Ocean® Cret, PCI Durafug® NT, PCI Durapox® NT plus, PCI Durapox® NT, PCI Gisogrund® 404, PCI Epoxigrund 390, PCI Seccoral® 1K, PCI Periplan® Extra, PCI Novoment® Z1, PCI Novoment® M3 plus, PCI Carraflex®, PCI Carraferm®, PCI Novoment® M1 plus
