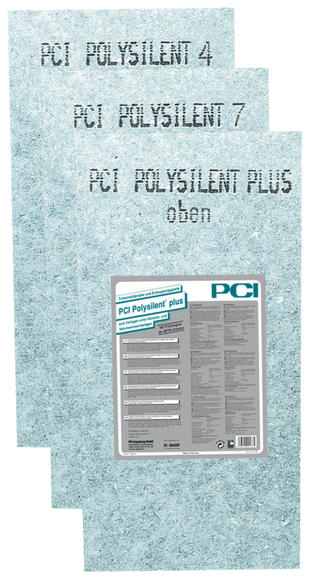

PCI Polysilent® Plus
Impact sound insulation board / isolation board
underlay for ceramic and natural stones
Areas of application
- For indoor use.
- For floors and walls.
- Reduces the impact sound.
- For isolating suitable ceramic and natural stone coverings from the substrate.
- For all substrates able to bear weight such as concrete or wooden floorboards; also suitable for stairs and corridors.
- Bonded laying of ceramic and natural stone coverings.
- It is possible to install the impact sound underlay under ceramic and natural stone coverings at a later stage even if the construction height is relatively low.
- For hotels, multi-level shops, owner-occupied flats, department stores, hostels.
- As leveling board to produce even surfaces with impact sound insulation when renovating old buildings.
- Can be applied in the categories EK-W-S, EK-G-S in accordance with the ZDB Merkblatt "Entkoppelungssysteme" (ZDB leaflet "isolating systems").
Product features
- Impact sound reduction value
PCI Polysilent 4: 9 dB
PCI Polysilent 7: 10 dB
PCI Polysilent plus: 16 dB
[FOOTNOTE_START]Note: An impact sound reduction value of only 10 dB feels to the human ear as if reducing the noise by half.[FOOTNOTE_END] - Low construction height, PCI Polysilent is available in heights of 4 mm and 7 mm, PCI Polysilent plus in a height of 10 mm.
- The underlay reduces tensions, for ceramic and natural stone coverings.
- No isolating layer, the impact sound also improves with PCI Polysilent boards glued to the substrate.
- Easy to apply, efficient method to reduce the impact sound under ceramic and natural stone coverings.
- Short installation time, can be quickly re-used in renovation of old buildings.
- Very low emissions,
GEV-EMICODE EC 1 PLUS
(PCI Polysilent 4 and 7) and/or
GEV-EMICODE EC 1
(PCI Polysilent plus). - Multi-purpose use, reliable solution for substrates after the formation of cracks abated or when laying top coverings with a joint pattern deviating from the screed.
Colors:
white top fleece
Forms of delivery:
1-board
