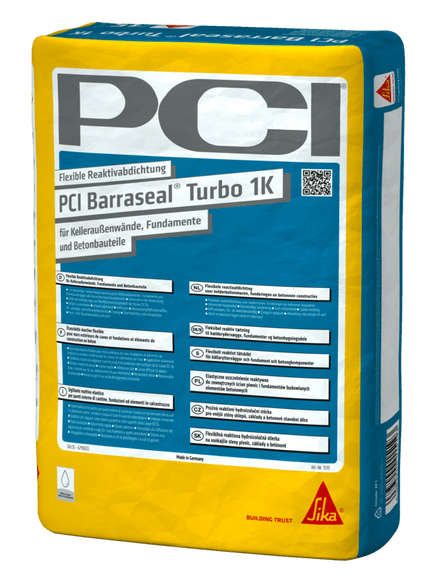

PCI Barraseal® Turbo 1K

Flexible reactive waterproofing membrane

for external basement walls, foundations and concrete elements

Technical data sheet

Flexible reactive waterproofing membrane

for external basement walls, foundations and concrete elements

Technical data sheet

Areas of application

Product features

Areas of application

For interior and exterior use, walls and floors.
For sealing basement walls, foundations and concrete components in accordance with DIN 18533 (W1-E).
As a seal against water pressure in accordance with test principles MDS, FPD and FBB.
As a horizontal barrier under walls in accordance with DIN 18533 (W4-E).
As a seal at the transition to water-impermeable components (FBB) and permanent formwork (FPD).
As a flexible base seal in accordance with DIN 18533 (W4-E).
As a surface protection system OS 5b.
As surface and chloride protection in accordance with EN 1504-2 (Table 5) for reinforced concrete.
As container sealing in accordance with DIN 18535, e.g. rainwater containers.
For bonding protective, drainage and insulation boards.
For crack-bridging sealing of old, damaged basement seals.

Product features

1-component, flexible reactive waterproofing membrane for basement walls, foundations and concrete components against ground moisture, accumulating seepage water and pressurised water.
Universal application: waterproofing, bonding of drainage and insulation boards and suitable as surface protection.
2 mm crack bridging according to test principles FPD, crack class R3.
Crack bridging ≥3 mm with a dry layer thickness of 3 mm.
Meets all requirements as a surface protection system OS 5b.
Easy to apply: can be sprayed, rolled, brushed and trowelled.
Adjustable consistency for greater ease of application when spraying, rolling or brushing.
Fast setting: for work under time pressure.
Secure adhesion: Can be used on mineral and bituminous substrates.
Water vapour permeable, UV, ageing and weather resistant.
Can be painted and plastered over.
Frost, frost-deicing salt resistant and impermeable: Protects against penetrating harmful salts such as chlorides.

Forms of delivery: 15-kg-bag

Consumption calculator

Your specification

Thickness

Area (m²)

Calculate now

Your Result

Quantity Required * approx

kg

corresponds

15-kg-bag

pieces

*

This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
