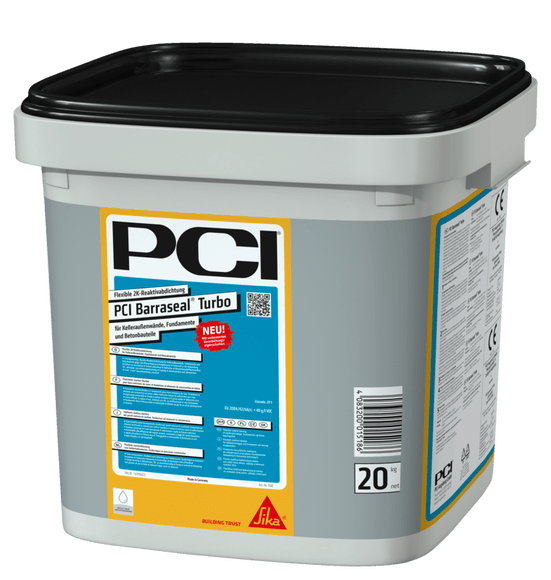

Flexible two-component reactive waterproofing membrane

PCI Barraseal® Turbo

for external basement walls, foundations and concrete elements

Note

With official test certificates in accordance with the test principles for mineral waterproofing slurry, flexible polymer-modified thick coating and transition to concrete components with high water penetration resistance. Surface protective system OS 5b in accordance with RiLi SIB.

fields of application

  • For indoors, outdoors, walls and floors.
  • For waterproofing basement walls, foundations and concrete structures to DIN 18533 class W1-E.
  • As waterproofing layer against pressing water in accordance with the test principles for mineral waterproofing slurry, flexible polymer-modified thick coating and transition to concrete components with high water penetration resistance.
  • As a damp proof course under walls to DIN 18533 class W4-E.
  • As waterproofing transitions of water-impermeable components and lost formwork.
  • As a flexible waterproofing layer to DIN 18533 class W4-E.
  • As surface protection system of clas OS 5b to RiLi SiB.
  • As surface / chloride protection to EN 1504-2 (table 5) for reinforced steel.
  • As waterproofing of a reservoir to DIN 18535 up to a water column height of 10 meters (W1-B, W2-B).
  • For bonding protection boards, drain boards and insulation boards.
  • For crack-bridging waterproofing of old damaged basement waterproofing layers.

features and benefits

  • 2 component, flexible reactive waterproofing membrane for basement walls, foundations and concrete elements against soil moisture, standing seepage water and pressing water.
  • Radon tight: For a high level of health protection.
  • For multiple use: as bonding slurry, waterproofing of surfaces, foundation walls, horizontal surfaces, for bonding drainage boards and insulation boards and as a surface protection for concrete elements.
  • 2 mm crack bridging according to test principles for flexible polymer-modified thick coating, crack class R3.
  • Meets all requirements as a surface protection of class OS 5b in accordance with the guideline for reinforced steel.
  • Easy to apply by spray gun, roller, brush or trowel.
  • Fast setting, for work under time pressure.
  • Curing control: ready for next layer when the color has changed.
  • Reliable bond, for use on mineral substrates and bituminous substrates.
  • Water vapor permeable, resistant to UV, aging and weather conditions.
  • Efficient: High dry layer thickness of approx. 90% of the amount of material applied.
  • Can be painted over and plastered over.
  • Resistant to frost, frost/de-icing salt and permeable: protects against harmful salts such as chloride.

colour: grey

packaging: 20-kg-pail
