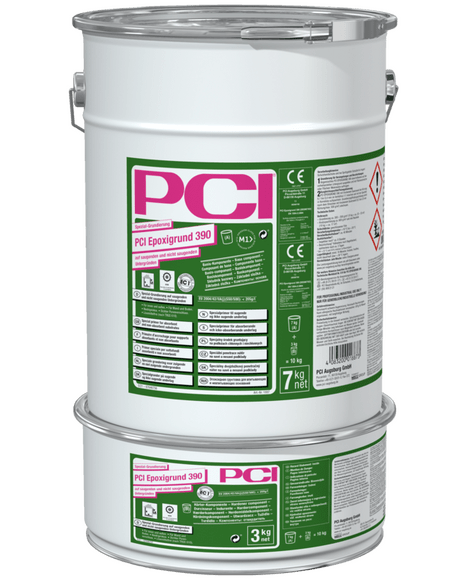

PCI Epoxigrund 390

Special primer on absorbent and non-absorbent substrates
PCI Epoxigrund 390
Dealer Search
features and benefits
fields of application
Calculator
downloads
certificates
  • Low viscosity, reliable bond of subsequent coatings and/or sealings.
  • Impermeable sealing of pores, prevents air bubbles from ascending from the substrate into the top coat.
  • Moisture barrier (two coats necessary) up to a residual moisture ≤ 7 CM% in the substrate of cement screeds, on underfloor heatings up to a residual moisture ≤ 5 CM%, when used as a primer before applying floor levellers with textile and resilient flooring or parquet to be subsequently laid.
  • Solvent free to TRGS 610, no damage to environment and operative due to solvent vapours, no danger of fire or explosion.
  • Very low emissions, GEV-EMICODE EC 1.
  • EU 2004/42/IIA(j)(550/500): < 200 g/l (PCI Epoxigrund 390).
  • EU 2004/42/IIA(j)(550/500): < 100 g/l (PCI Epoxigrund Rapid).

PCI Epoxigrund Rapid

  • Fast curing, subsequent work can be continued after approx. 3 ½ hours.
  • As binding agent for producing screeds, repair mortars and drain mortars based on epoxy resin and able to be quickly used.
  • Suitable as cast resin for the force-transmitting sealing of cracks in screed surfaces.

EMICODE: EC1
colour: colourless - transparent
packaging: 25-kg-set/ 17,50-kg-hobbock/ 7,50-kg-pail/ 10-kg-pail/ 1-kg-can
  • For indoor and outdoor use.
  • For walls and floors.
  • Primer for PCI sealings and PCI coatings on cementitious substrates, mastic asphalt screeds, ceramic tiles, synthetic resin coatings and wooden substrates.
  • Primer for floors in the interior before applying floor levellers/fairing coats, also when subsequently gluing parquet flooring on
    - concrete floors, cement screeds, calcium sulphate screeds, magnesite screeds
    - mastic asphalt screeds
    - ceramic tiles and synthetic resin coatings
    - wooden substrates
    - substrates with residues of dispersion, reaction resin, water soluble (e.g. spent sulphite liquor adhesive) and bitumen adhesives.
  • Suitable as leveller and/or fairing coat when mixed with silica sand.
  • As a binding agent for producing screeds, repair mortars and drain mortars based on epoxy resin.
  • Suitable for the use on ships; meets the requirements of Marine Equipment Directive (MED) 96/98/EC.
PCI Epoxigrund 390
Special primer
on absorbent and non-absorbent substrates
Technical Datasheet: 519
Area (m²):
Your Result:
Quantity Required approximately (kg):
from
to
corresponds
25-kg-set (pieces):
from
to
17,50-kg-hobbock (pieces):
from
to
10-kg-pail (pieces):
from
to
7,50-kg-pail (pieces):
from
to
1-kg-can (pieces):
from
to
Area (m²):
Your Result:
Quantity Required approximately (kg):
corresponds
25-kg-set (pieces):
17,50-kg-hobbock (pieces):
10-kg-pail (pieces):
7,50-kg-pail (pieces):
1-kg-can (pieces):
name MED EC Type Examination Certificate Marine Equipment Directive 96/98/EC Item No. A.1/3.1 rules and standards Marine Equipment Directive 96/98/EC Item No. A.1/3.1 combined with product PCI Periplan® Extra, PCI Epoxigrund 390
name MED EC Type Examination Certificate Marine Equipment Directive 96/98/EC Item No. A.1/3.18c rules and standards Marine Equipment Directive 96/98/EC Item No. A.1/3.18c combined with product PCI Nanolight®, PCI Epoxigrund 390
name MED EC Certificate of Conformity Marine Equipment Directive 96/98/EC Item No. A.1/3.1, A.1/3.18c rules and standards Marine Equipment Directive 96/98/EC Item No. A.1/3.1, A.1/3.18c combined with product PCI Lastogum®, PCI Nanolight®, PCI Durafug® NT, PCI Durapox® NT, PCI Durapox® NT plus, PCI Novoment® M1 plus, PCI Nanofug®, PCI Seccoral® 1K, PCI Epoxigrund 390, PCI STL 39, PCI Gisogrund® 404, PCI Flexmörtel® S2
name MED EC Type Examination Certificate Marine Equipment Directive 96/98/EC Item No. A.1/3.18c rules and standards Marine Equipment Directive 96/98/EC Item No. A.1/3.18c combined with product PCI Epoxigrund 390
name MED EC Type Examination Certificate Marine Equipment Directive 96/98/EC Item No. A.1/3.18c rules and standards Marine Equipment Directive 96/98/EC Item No. A.1/3.18c combined with product PCI Nanofug®, PCI Epoxigrund 390, PCI Ocean® Flex PUR
name MED EC Certificate of Conformity Marine Equipment Directive 2014/90/EU Item No MED/3.13, MED/3.18a, MED/3.18c rules and standards Marine Equipment Directive 2014/90/EU Item No MED/3.13, MED/3.18a, MED/3.18c combined with product PCI Carraflex®, PCI Carraferm®, PCI Novoment® Z1, PCI Novoment® M3 plus, PCI Nanofug®, PCI Seccoral® 1K, PCI Epoxigrund 390, PCI Ocean® Flex PUR, PCI UKL 302, PCI UFX 382, PCI VG 2, PCI Epoxigrund Rapid, PCI USP 32 S, PCI Nanofug® Premium
name Declaration of Conformity Marine Equipment Directive 2014/90/EU Item No. MED/3.18a, MED/3.18c rules and standards Marine Equipment Directive 2014/90/EU Item No. MED/3.18a, MED/3.18c combined with product PCI Carraflex®, PCI Lastogum®, PCI Nanolight®, PCI Durafug® NT, PCI Durapox® NT, PCI Durapox® NT plus, PCI Carraferm®, PCI Nanofug®, PCI Seccoral® 1K, PCI Epoxigrund 390, PCI Ocean® Flex PUR, PCI STL 39, PCI UKL 302, PCI Gisogrund® 404, PCI UFX 382, PCI VG 2, PCI Epoxigrund Rapid, PCI USP 32 S, PCI Nanofug® Premium, PCI Flexmörtel® S2
name Declaration of Conformity Marine Equipment Directive 2014/90/EU Item No. MED/3.1 rules and standards Marine Equipment Directive 2014/90/EU Item No. MED/3.1 combined with product PCI Periplan® Extra, PCI Novoment® M1 plus, PCI Epoxigrund 390, PCI STL 39
name Classification report EN 13501-1 (Bfl-s1) rules and standards EN 13501-1 (Bfl-s1) combined with product PCI Finopur®, PCI Apoten®, PCI Epoxigrund 390
name Classification report EN 13501-1 (Efl) rules and standards EN 13501-1 (Efl) combined with product PCI Epoxigrund 390
name Licensing GEV EMICODE (EC1 R) rules and standards GEV EMICODE (EC1 R) combined with product PCI Epoxigrund 390
